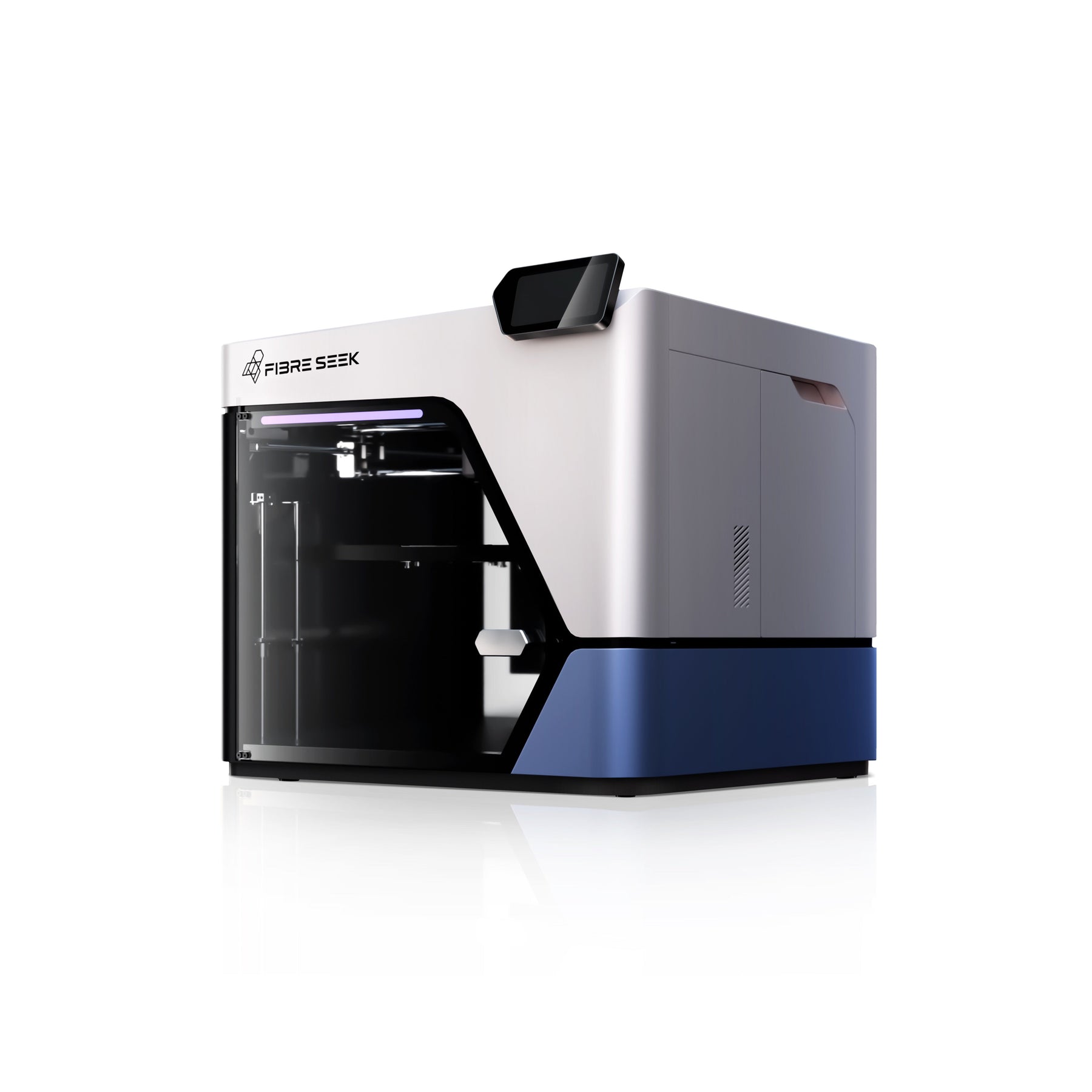

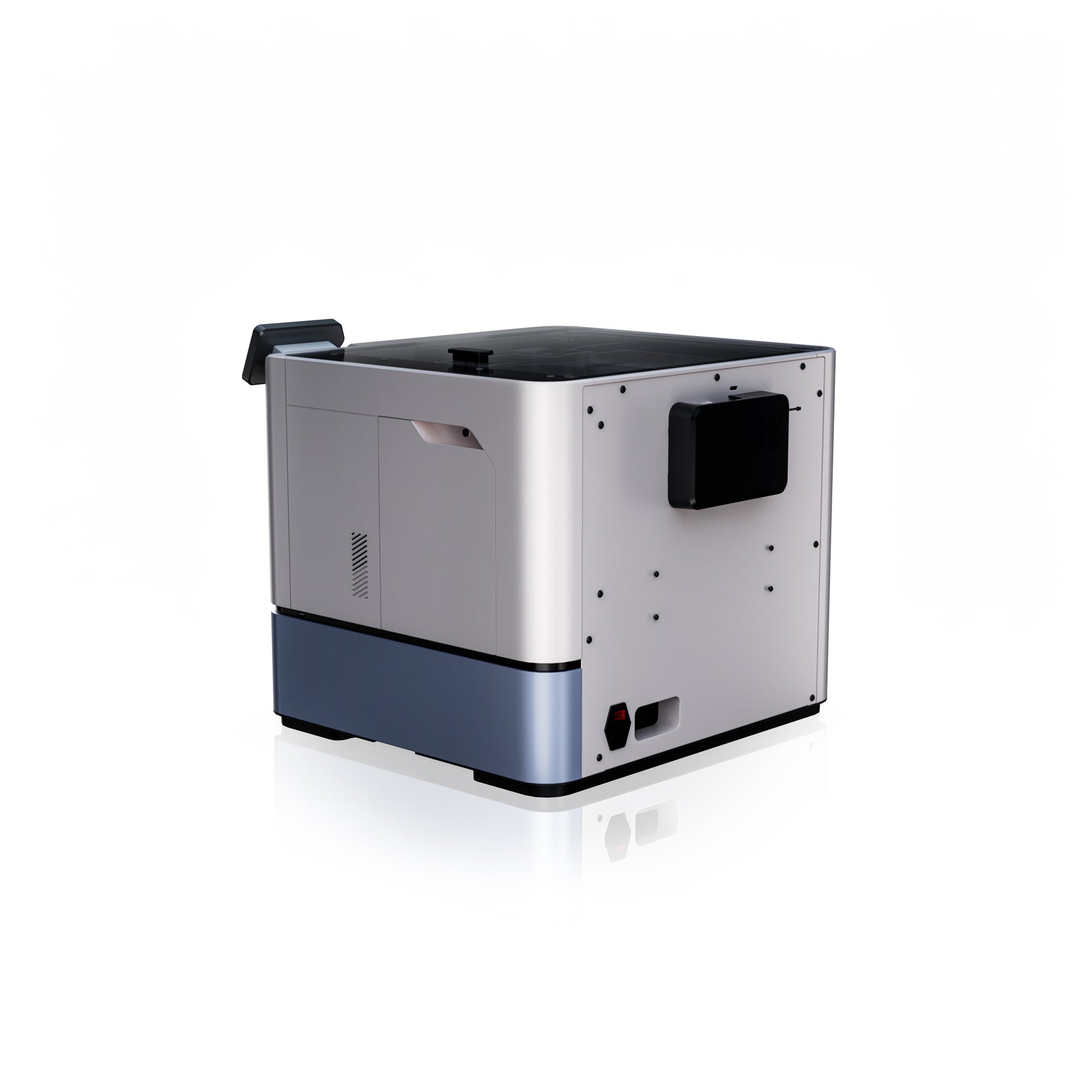

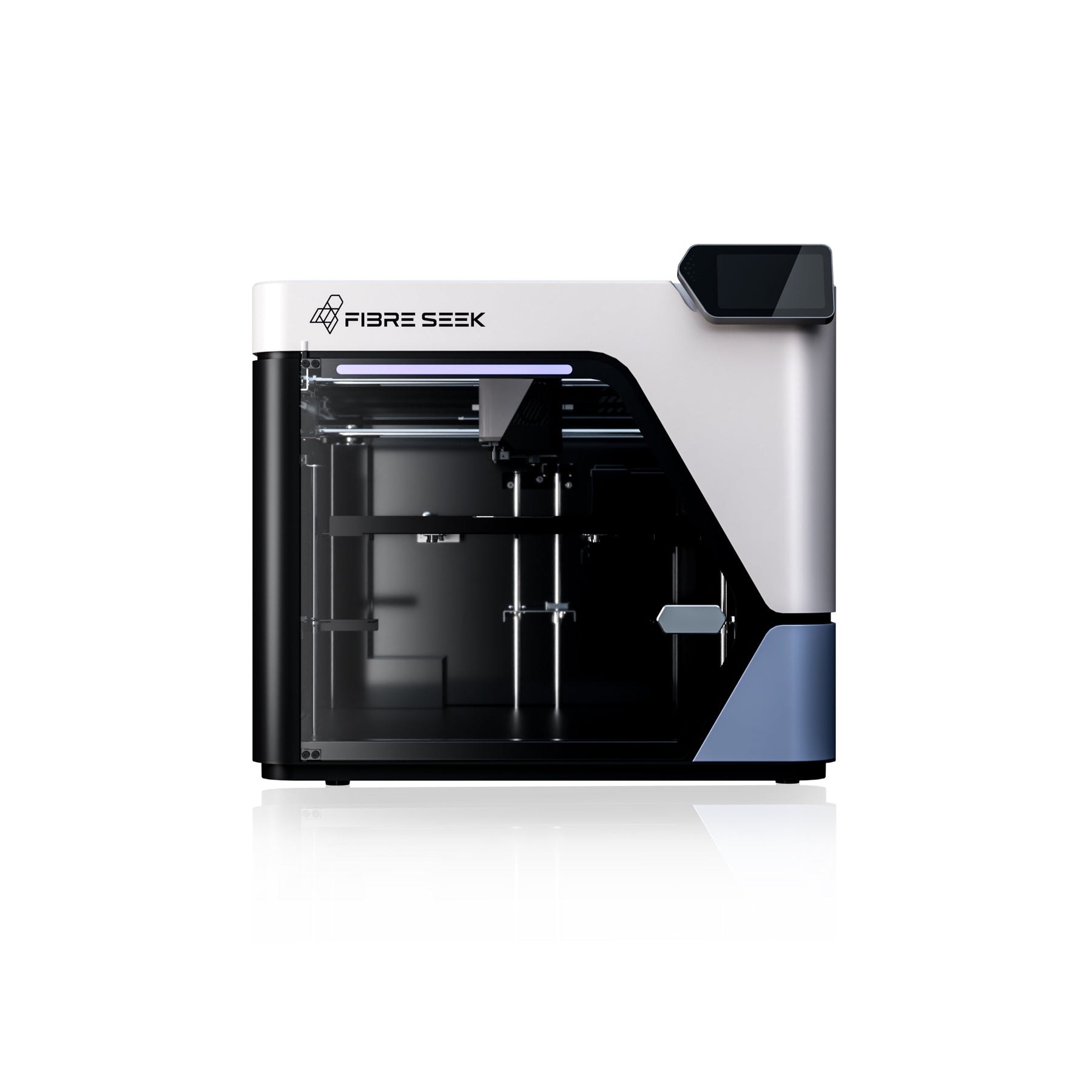

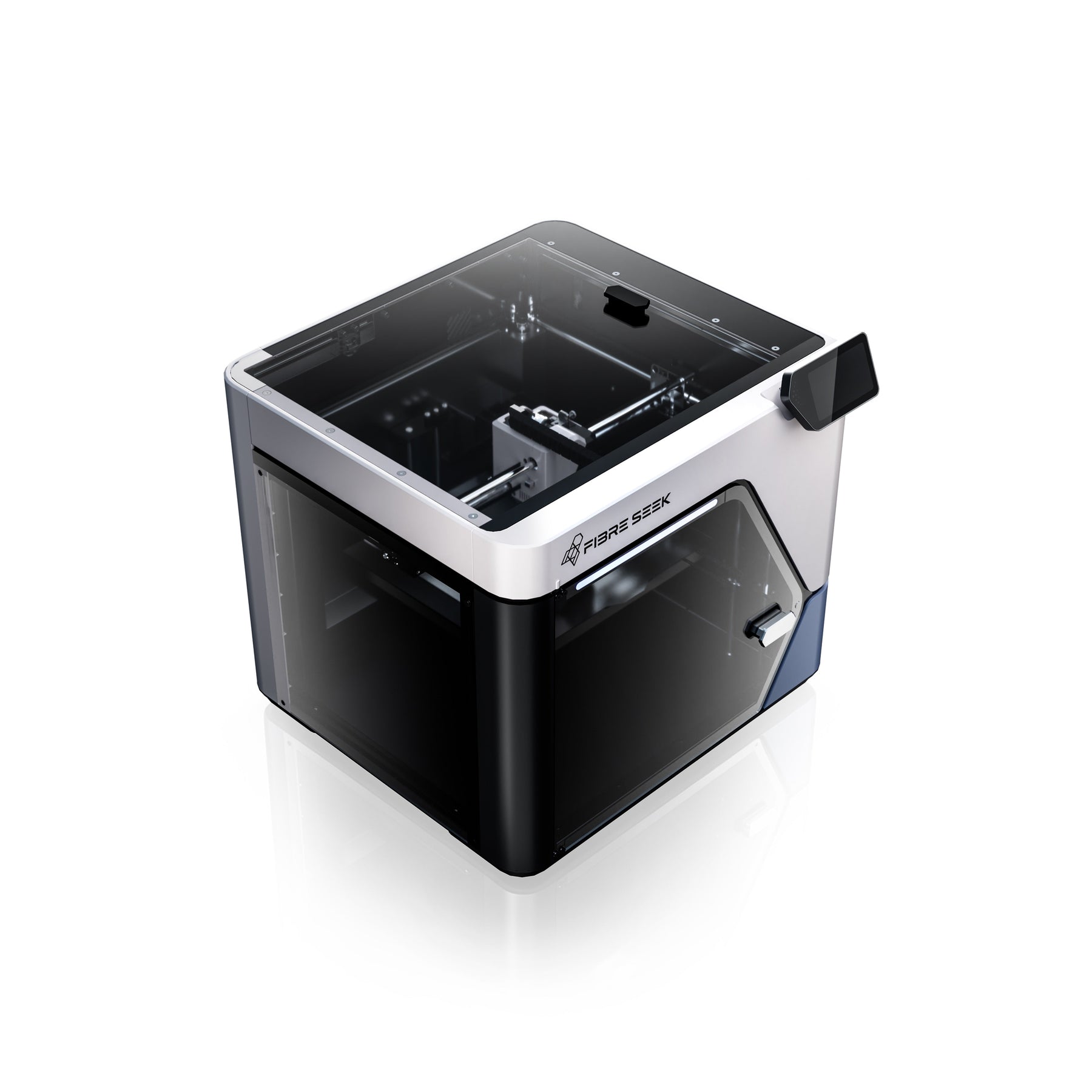

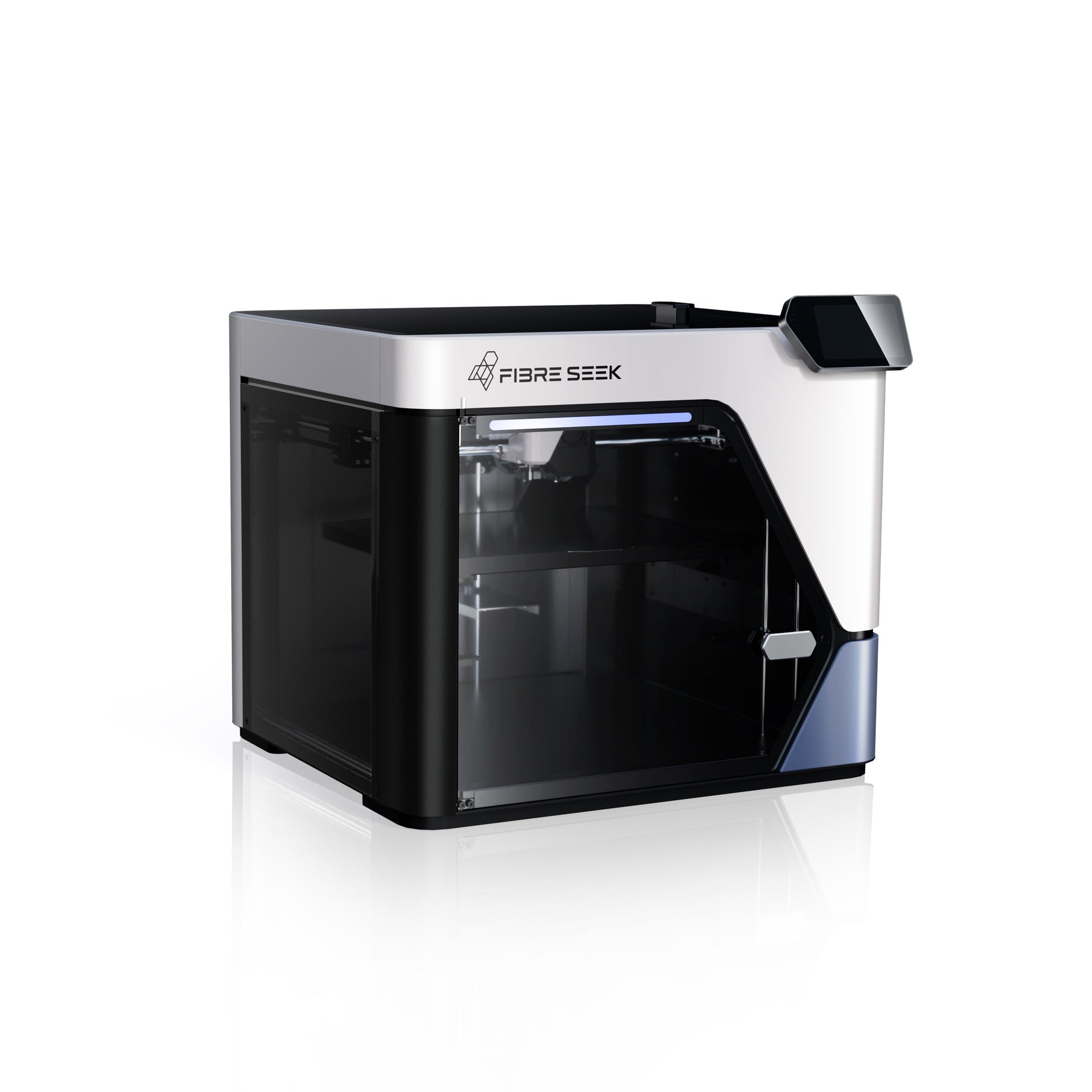

FibreSeeker 3 product view 01

FibreSeeker 3

The Pioneer of Desktop Continuous Fiber 3D Printing

  • Industrial-Grade Performance: tensile strength with 900 mpa
  • Complete And Flawless Workflow: built-in ai capabilities
  • Engineering Printing Efficiency: up to 500 mm/s
  • Stable Experience: proprietary composite nozzle and 65°C active heated chamber

FibreSeeker 3 Pre-Sale

$4,699.00

$4,999.00 Save $300.00

In stock

Secure payment
Regional shipping
Live chat support
14-day return and refund service
Carbon fibre reinforced drone demonstrating industrial-grade performance

Why Choose FibreSeeker 3?

Industrial-grade
performance

Industrial-grade performance

Up to 900 MPa tensile strength
10x stronger than competitors

*Data sourced from FibreSeek Lab

FibreSeeker 3 build volume outline

Extra-Large
Build Space

Extra-Large Build Space

300*300*245mm to unleash your imagination. Print large-scale prototypes and functional end-use parts in the working area

FibreSeeker high speed printing

Ultra-fast Printing
Speed with 500 mm/s

Ultra-fast Printing Speed
with 500 mm/s

Powered by an advanced motion system, delivering
exceptional precision and speed simultaneously

FibreSeeker proprietary composite nozzle

Proprietary
Composite Nozzle

Proprietary Composite Nozzle

Support both FDM and continuous fiber filaments,
maximizing your efficiency and versatility

Three print modes

Three Print Modes

Supports different engineering priorities: strength, speed or surface quality

65 degree active heated chamber

65°C Active Heated Chamber

Utilizes active thermal management to ensure flawless, large-scale prints with superior dimensional accuracy

Automatic calibration

Auto-Leveling & Calibration

No manual tuning, for a perfect first-layer print

Integrated intelligent camera

Integrated Intelligent Camera

Keep a real-time eye on your prints, and effortlessly generate stunning time-lapse videos to showcase your creative process

Multiple supported filaments

Support Multiple Filaments

Lower printing costs

Incredibly 10x Lower Printing Costs

Friendly Customer Support

12-Month Warranty

900MPa continuous carbon fiber strength demonstrated on a drone

900MPa

Continuous Carbon Fiber Strength

10x Stronger Than the Competition

FibreSeeker 3 prints with real continuous carbon fiber, laying a load-bearing fiber path inside the part instead of relying on chopped fillers. The result is stronger functional parts for drones, tools, and custom structures.

900MPa MPa strength
10x stronger
2.25x vs. 400MPa aluminum alloy
500mm per second printing and a functional sample part

500mm/s

Ultra-fast Printing Speed

Less Waiting. Faster Iteration.

FibreSeeker 3 is built for speed without losing the promise of strength. Prototype, test, and refine functional parts faster, so ideas move from screen to desk with less downtime.

500 mm/s max speed
Fast iteration cycle
Less waiting time
FibreSeeker 3 continuous carbon fiber build space dimensions

Continuous Carbon Fiber Strength

300 x 300 x 245mm

The roomy build volume gives creators more freedom to print larger carbon-fiber-reinforced parts, from RC components to custom fixtures, with less splitting, assembly, and compromise.

300 mm X-axis
300 mm X-axis
245 mm Z-axis

Product Model

Technology

Fibre
Composite Fibre Co-extrusion (CFC)
Plastic
Fused Filament Fabrication (FFF)

Printer Body

Device Dimensions
615 × 595 × 540 mm³
Device Weight
32 kg
Build Volume (W×D×H)
300 × 300 × 245 mm³
Outer Frame
Plastic and Glass
Printing Accuracy
±0.2 mm
Minimum Layer Thickness
50 μm

Printhead

Hotend
All Metal
Nozzle
Hardened Steel
Max FFF Nozzle Temperature
350°C
Max CFC Nozzle Temperature
350°C
FFF Nozzle Diameter
0.4 mm
CFC Nozzle Diameter
0.7 mm
Fibre Cutter
Built-in
FFF Filament Diameter
1.75 mm

Chamber

Active Chamber Heating
Supported
Max Temperature
65°C

Heatbed

Supported Build Plate Type
Flexible High-Temperature Base
Max Heatbed Temperature
110°C
Bed-Leveling
Fully Automatic Leveling

Material Storage

FFF Plastic
Back Hangers
CFC Fibre
Embedded Chamber

Speed

Max FFF Speed
500 mm/s
Max CFC Speed
20 cc/h

Cooling

Part Cooling Fan
Closed Loop Control
Cooling Fan for Hotend
Closed Loop Control
Main Control Board Fan
Closed Loop Control

Supported Filament Type

FFF Plastic
PLA, PETG, PC, PA, PACF, PETGF
CFC Fibre
X-CCF, X-CGF
Composite Tensile Strength
Up to 900 MPa

Electrical Requirements

Voltage
100–120 VAC / 200–240 VAC, 50/60 Hz
Maximum Power
1350 W

Electronics

Control Screen
5-inch Touchscreen
Storage
Built-in 32 GB eMMC and USB Port
Control Interface
Touchscreen & PC App

Sensors

Live View Camera
Built-in: 1280×720
Plastic Breakage Sensor
Supported
Plastic Clogging Sensor
Supported
Fiber Breakage Sensor
Supported
Fiber Clogging Sensor
Supported

Software

Slicer
FibreSeek Aura (FFF+CFC)
Operating System
Windows, Mac
Data Formats
Compatible with STL, STP, 3MF
